The production process of paper corner protectors, also known as cardboard corner protectors or edge protectors, typically involves several steps. These corner protectors are commonly used in packaging to reinforce and protect the corners of goods during transportation and handling. Here is a general overview of the production process:

1. Raw Material Selection: The primary material used in the production of paper corner protectors is usually recycled or virgin paperboard. The paperboard is selected based on its strength, durability, and environmental sustainability.

2. Paperboard Cutting: The selected paperboard is cut into strips of the desired width. The width depends on the size and strength requirements of the corner protectors.

3. Corrugation (Optional): In some cases, the paperboard strips may be sent through a corrugation machine to add rigidity and strength. This process involves passing the strips through corrugated rollers that create a wavy pattern on one side of the paperboard, increasing its structural integrity.

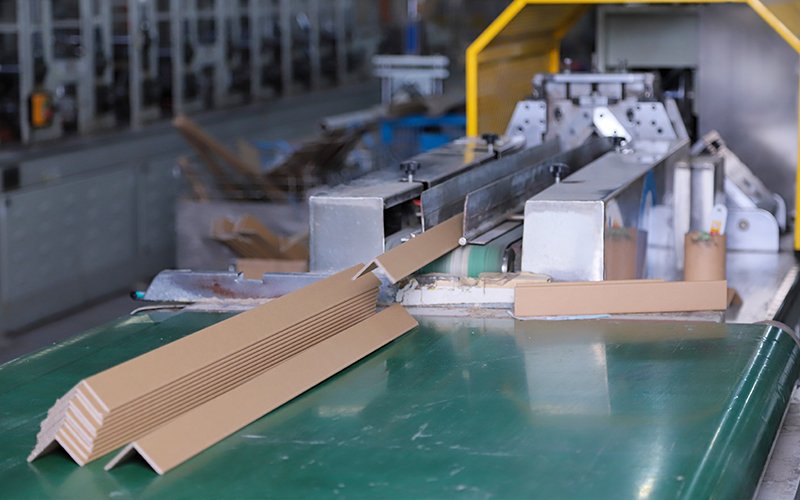

4. Forming and Gluing: The cut paperboard strips are fed into a corner protector forming machine. The machine folds the strips into a 90-degree angle, creating an L-shaped corner protector. Adhesive or glue is applied to the overlapping edges to secure them together.

5. Compression and Drying: Once the corner protectors are formed and glued, they may undergo a compression process to ensure proper bonding and shape retention. Depending on the type of adhesive used, the corner protectors may need to be dried or cured before further processing.

6. Cutting and Trimming: The formed corner protectors are cut into the desired lengths based on customer specifications. Trimming processes may be employed to achieve clean and uniform edges.

7. Quality Inspection: The corner protectors go through a quality control inspection to check for any defects, such as weak joints, improper angles, or inadequate bonding. Any defective corner protectors are discarded or reworked as necessary.

8. Printing or Labeling (Optional): If branding, identification, or product information is required, the corner protectors may undergo printing or labeling processes. This can be done using various techniques such as screen printing or applying adhesive labels.

9. Packaging: The finished corner protectors are then packaged in bundles or boxes, ready for distribution and use in packaging applications.

It's important to note that the production process may vary depending on the specific equipment, machinery, and techniques used by different manufacturers. Some manufacturers may also incorporate additional steps or advanced processes to meet specific requirements or customize the corner protectors for specialized applications.
